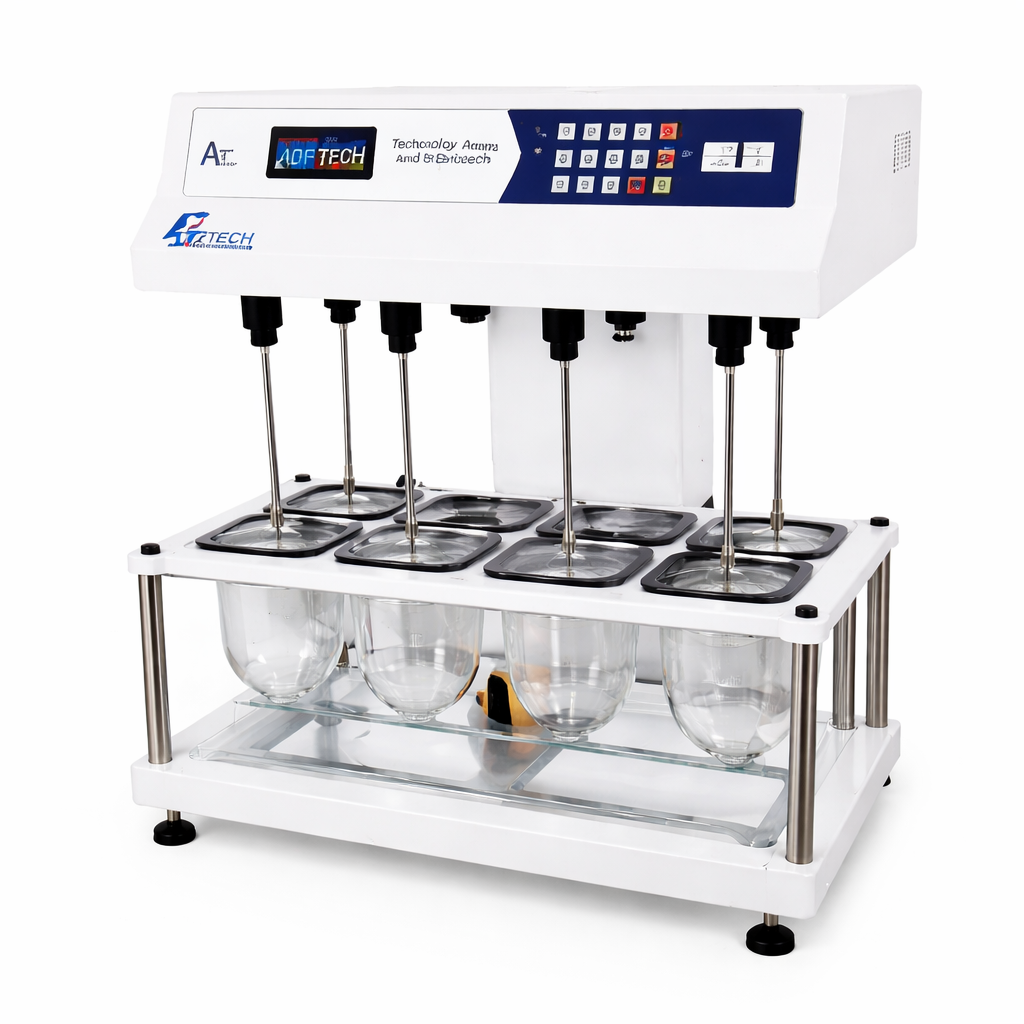

Tablet Dissolution Apparatus

The Tablet Dissolution Apparatus from Afftech Technology and Services is a precision pharmaceutical testing instrument used to determine the dissolution rate of tablets and capsules under controlled laboratory conditions. The apparatus evaluates how quickly the active pharmaceutical ingredient (API) dissolves in a specific dissolution medium, ensuring drug quality, consistency, and compliance with pharmacopeial standards.

Designed according to USP, IP, BP, and EP pharmacopeia standards, the dissolution tester provides accurate control of temperature, stirring speed, and test duration, making it ideal for pharmaceutical manufacturing units, quality control laboratories, research institutes, and academic laboratories.

The instrument features multiple test stations, a digital control panel, precise RPM control, and temperature-regulated water bath, ensuring reliable and reproducible dissolution testing results.

7807105237, 6230362608

Category:

Description

Product Specifications

Parameter Specification
Product Name Tablet Dissolution Test Apparatus
Brand Afftech Technology and Services
Stations 6 / 8 Test Stations
Dissolution Method Paddle / Basket Method
RPM Range 25 – 250 RPM
RPM Accuracy ±1 RPM
Temperature Range Ambient to 50°C
Temperature Accuracy ±0.3°C
Timer Range 0 – 99 Hours
Display Digital LCD / LED Display
Beaker Capacity 1000 ml Borosilicate Glass Vessels
Heater Stainless Steel Immersion Heater
Construction Powder Coated Mild Steel Body
Power Supply 220V AC, 50 Hz

Key Features

  • USP / IP compliant dissolution testing system
  • Microprocessor based digital control panel
  • Precise RPM control for paddle or basket rotation
  • Temperature controlled water bath for uniform heating
  • Multiple test stations for simultaneous sample analysis
  • Digital timer with alarm function
  • Durable powder coated corrosion resistant body
  • Easy to operate and maintain

Applications

  • Pharmaceutical quality control laboratories
  • Drug formulation and research laboratories
  • Pharmaceutical manufacturing plants
  • Dissolution testing of tablets and capsules
  • Academic and research institutions
