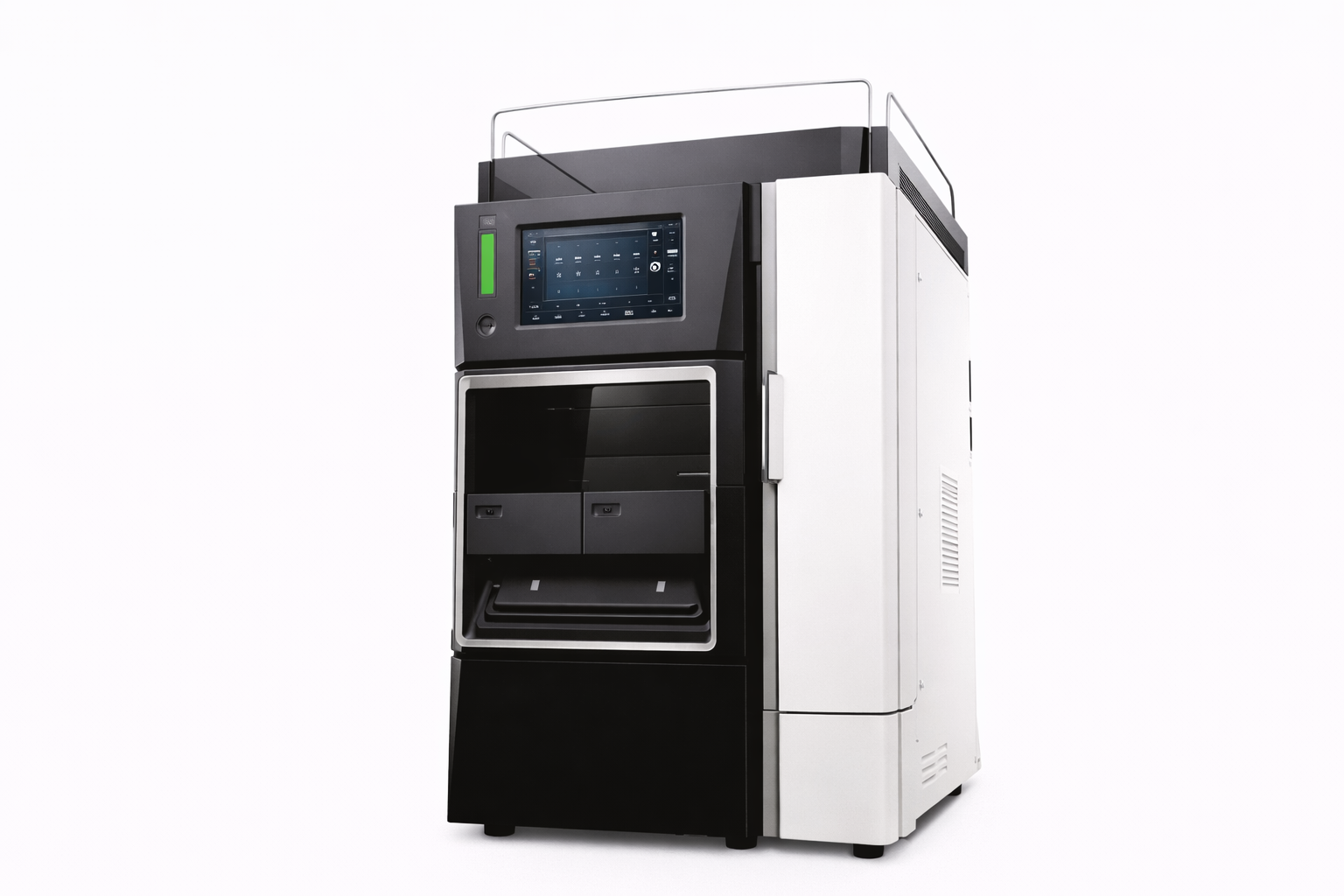

High Pressure Liquid Chromatograph (HPLC)

The High Pressure Liquid Chromatograph (HPLC) from Afftech Technology and Services is a high-precision analytical instrument used for the separation, identification, and quantification of chemical compounds in complex mixtures. HPLC technology is widely used in pharmaceutical, chemical, food, environmental, and research laboratories for accurate analytical testing.

The system works by pumping a liquid mobile phase at high pressure through a chromatographic column containing a stationary phase. Different components of the sample interact differently with the stationary phase and therefore separate as they pass through the column. The separated compounds are detected and displayed as chromatographic peaks.

Afftech HPLC systems are designed with high-precision pumps, advanced detectors, automatic sample injection systems, and modern data processing software, ensuring highly accurate and reproducible analytical results.

7807105237, 6230362608

Category:

Description

Product Specifications

Parameter Specification
Product Name High Pressure Liquid Chromatograph (HPLC)
Brand Afftech Technology and Services
Pump Type Binary / Quaternary Gradient Pump
Flow Rate Range 0.001 – 10 ml/min
Pressure Range Up to 6000 psi
Detector Type UV / PDA / RI Detector (Optional)
Wavelength Range 190 – 800 nm
Autosampler Automatic Sample Injection
Column Compatibility Standard Analytical Columns
Display Digital Touchscreen Interface
Data Processing Chromatography Software
Construction Powder Coated Metal Body
Power Supply 220V AC, 50 Hz

Key Features

  • High precision gradient solvent delivery system
  • Advanced UV / PDA detection technology
  • Automatic sample injection system (autosampler)
  • High stability high-pressure pump system
  • Large touchscreen interface and control software
  • Excellent separation accuracy and repeatability
  • Modular design for flexible configuration
  • Suitable for routine and advanced laboratory analysis

Applications

  • Pharmaceutical drug analysis
  • Chemical compound separation and identification
  • Food and beverage quality testing
  • Environmental contaminant analysis
  • Biotechnology and biochemical research
  • Clinical and forensic laboratories
